Stone Pavilion

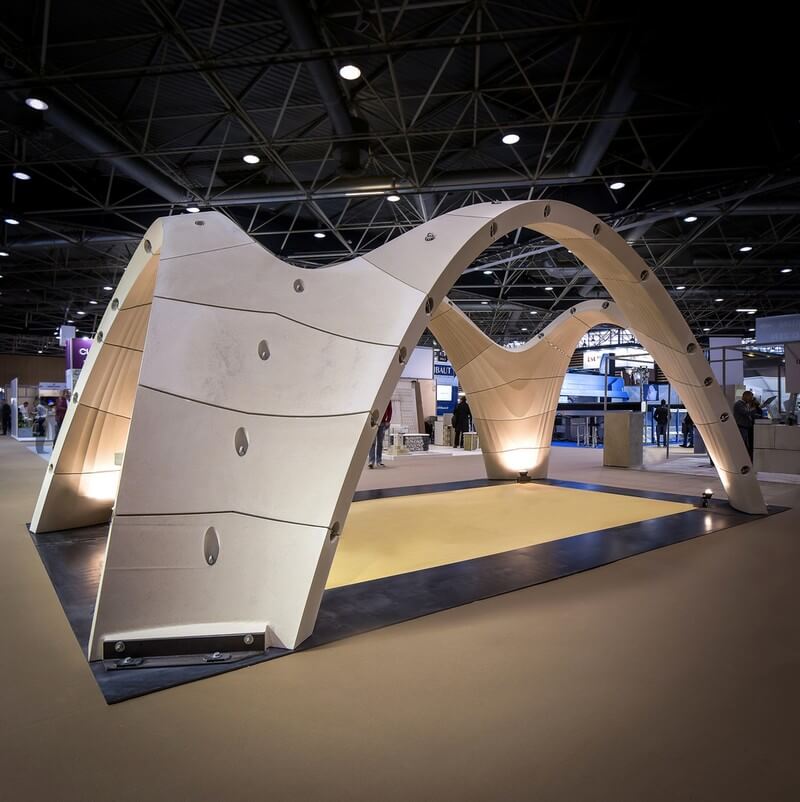

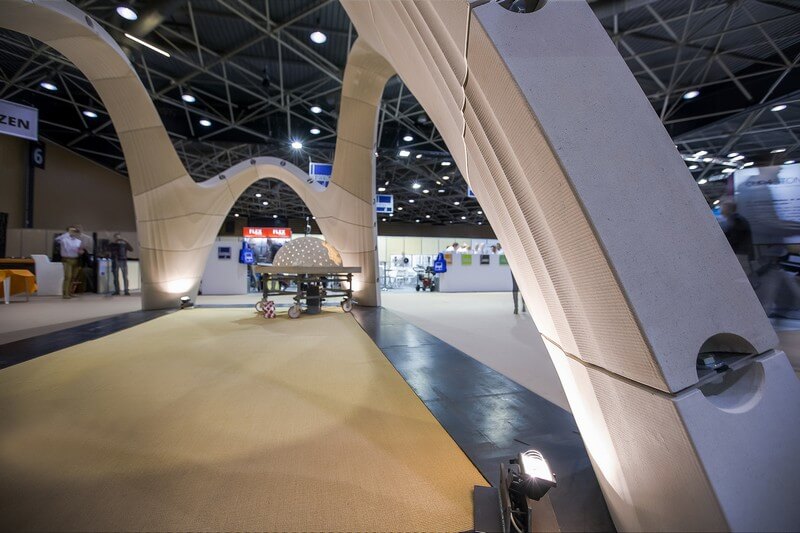

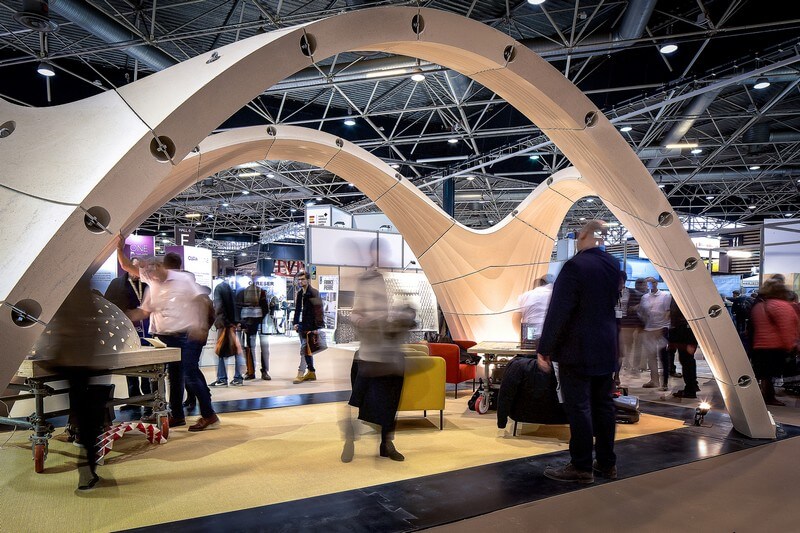

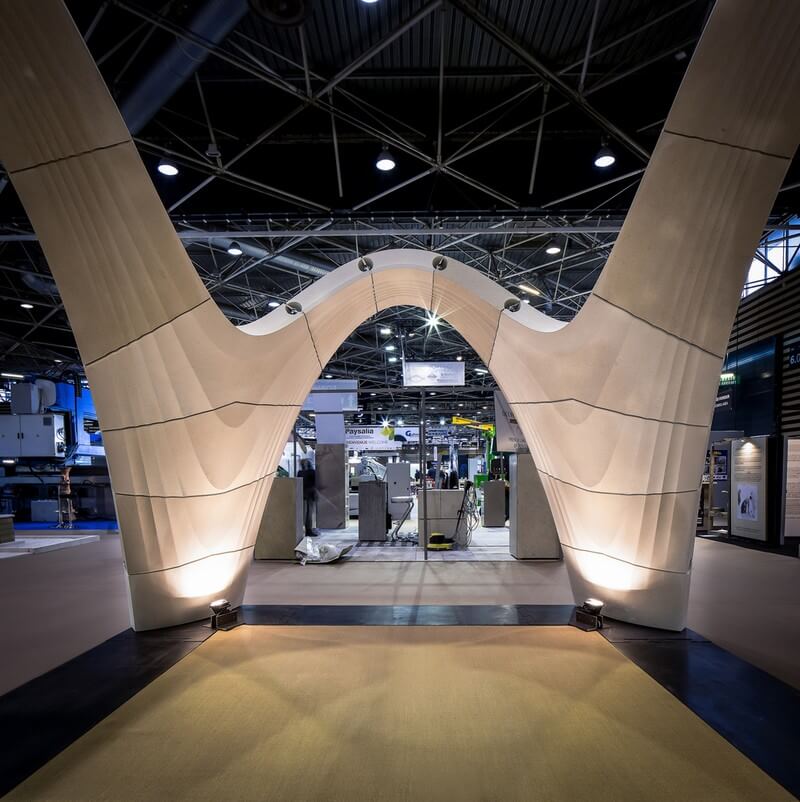

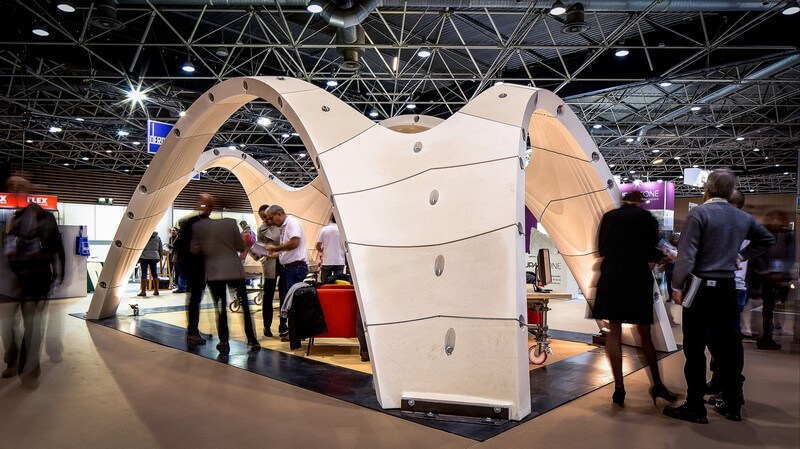

New Fundamentals Research Group, in partnership with S.N.B.R., designed and fabricated a stone vaulted pavilion for Rocalia, a natural stone fair held in Lyon. At a total area of 36 square meters and 3.20 meters in height, Flux reconnects the past to the present by combining traditional sculptural design with contemporary fabrication processes.

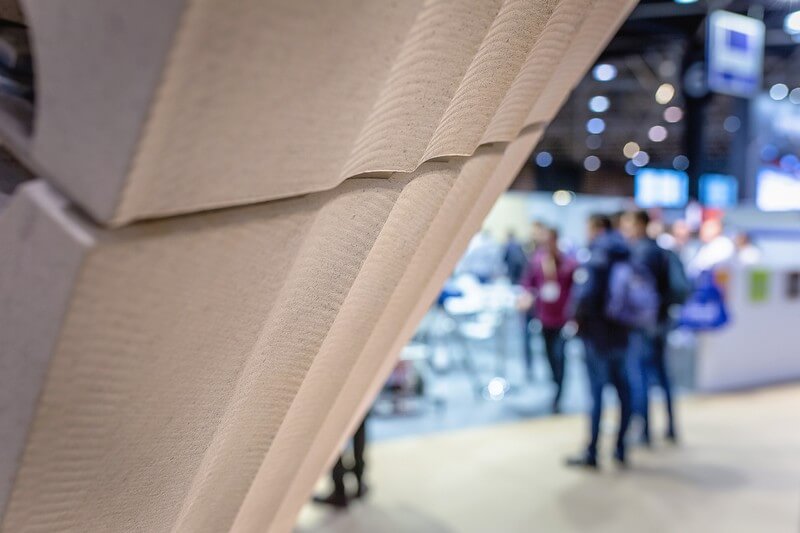

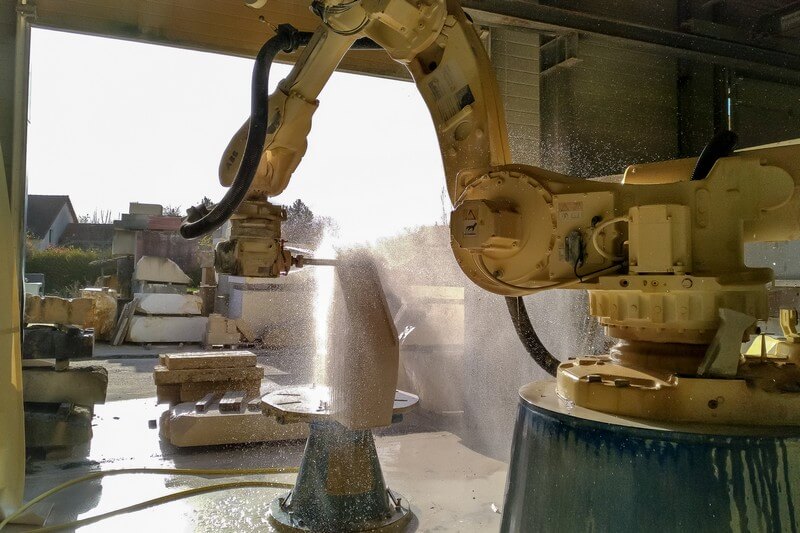

The structure’s foundation is a network of catenary curves which inform the vaults. Complex milling forms and joint cutting operations were completed with the assistance of a robotic arm. However, because the blocks are lightweight and there are few support structures, assembly is simple.

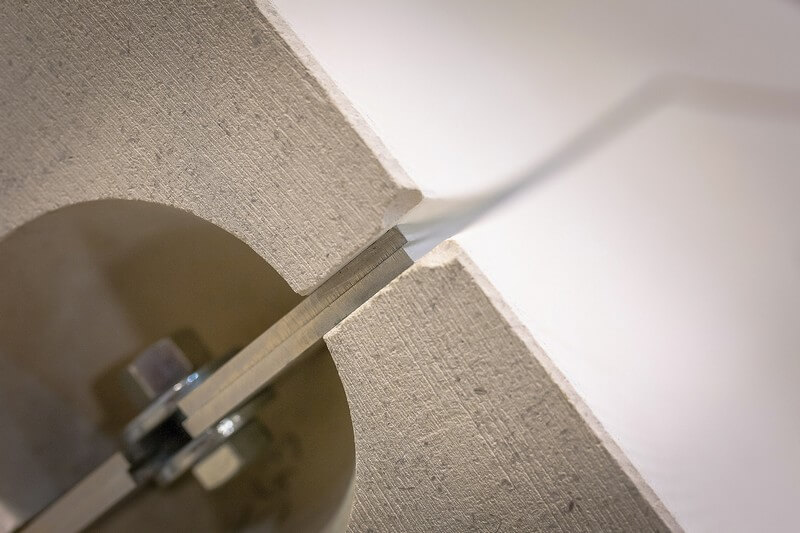

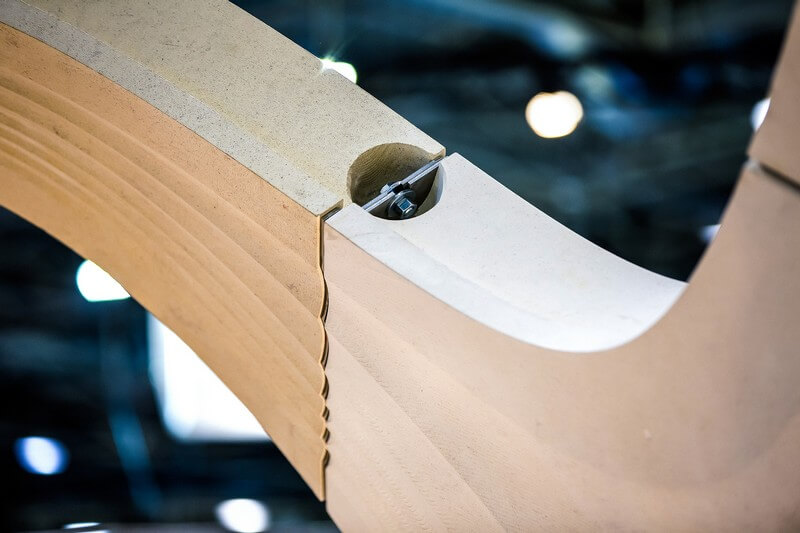

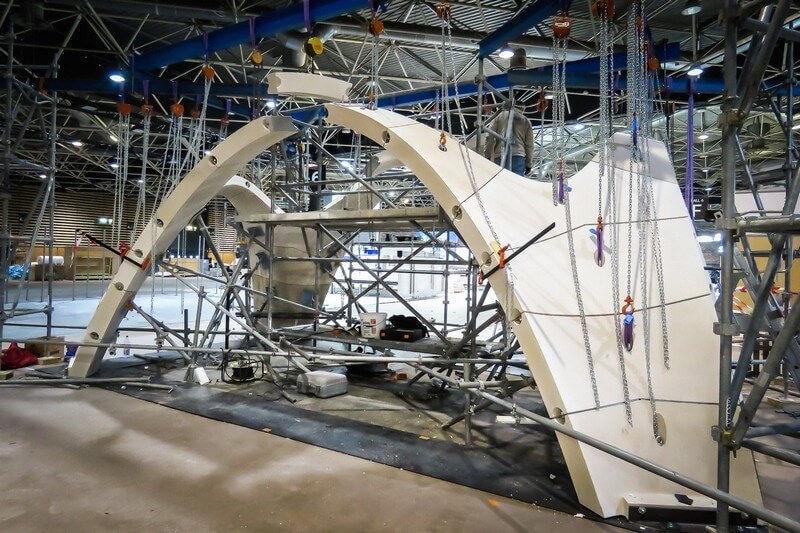

In order to connect the stone voussoirs to one another, metal plates are glued with epoxy resin to each concave segment and then fastened together using a bolt system. Piece by piece, the digital 3D model successfully came to life. The catenary curves serve a dual purpose by ensuring the structure is supported by compressive forces while visually creating aesthetic continuity throughout the design.

A micro-cement “roof” completes the form. Flux manages to demonstrate the technical ability of modern-day CNC machines with traditional building materials such as this natural stone.
