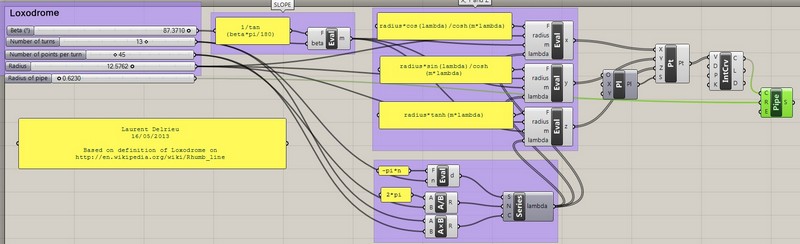

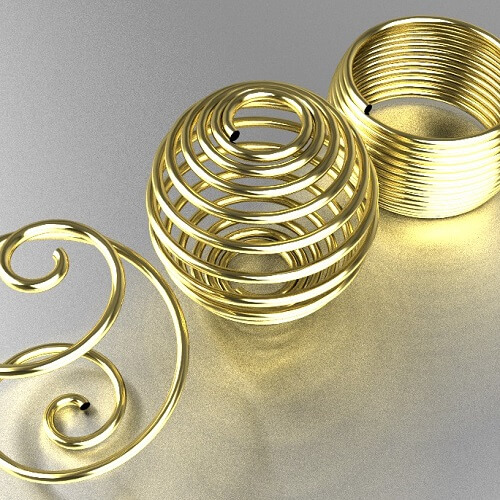

In this grasshopper definition by Laurent DELRIEU you can model a symetric loxodrome on a sphere. It simply can be done in any revolution object. Laurent used equations from a wikipedia page http://en.wikipedia.org/wiki/Rhumb_line.
