Parametric Roof Shells

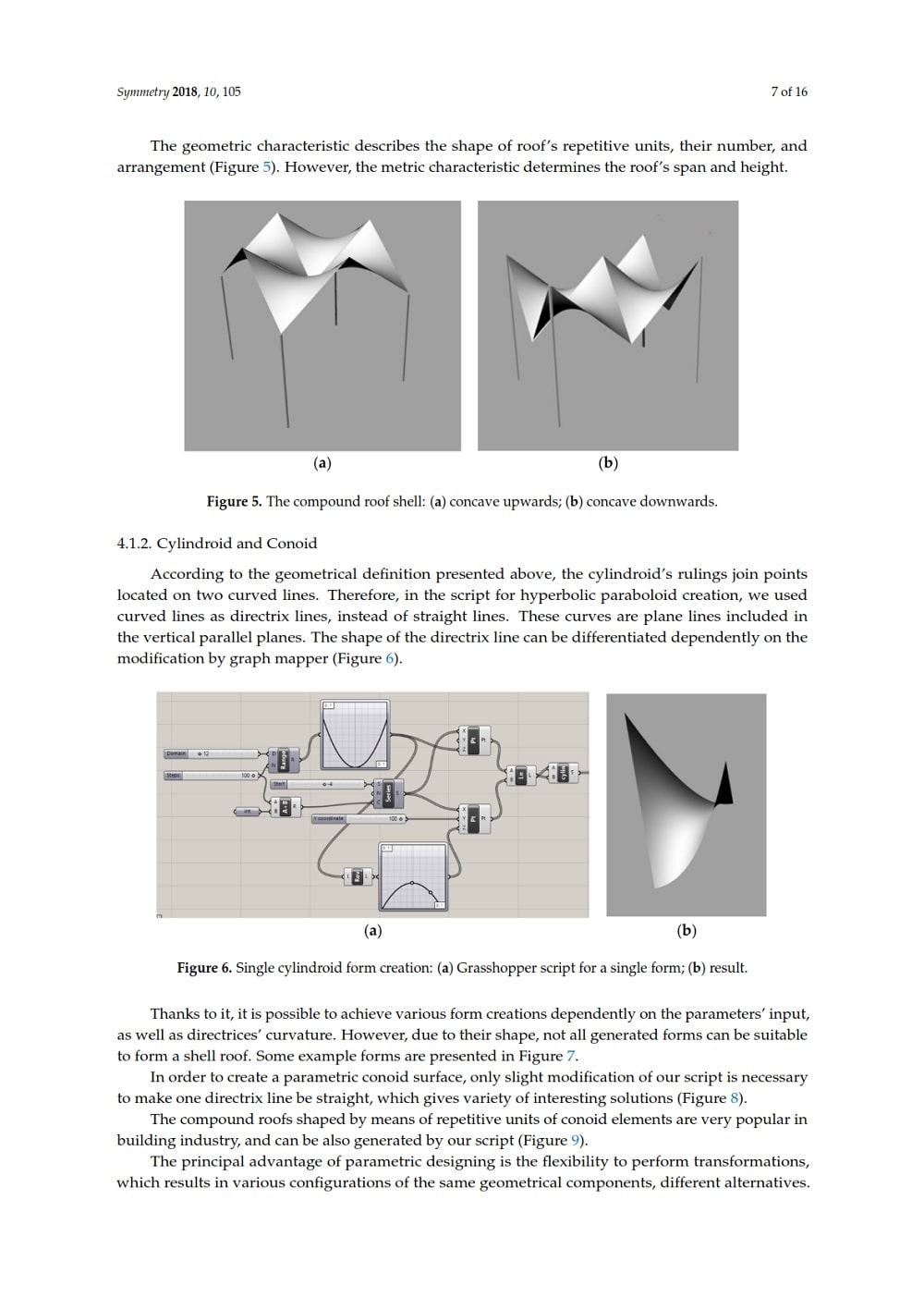

The aim of this study by Jolanta Dzwierzynska and Aleksandra Prokopska is to develop an original, methodical and practical approach to the early stages of parametric design of roof shells formed by repetitive modules of Catalan surfaces. It is presented on the example of designing the roof shells compound of four concrete elements. The designing process proposed by us consists in linking geometric shaping of roofs’ models with their structural analysis and optimization. Contrary to other methods, which use optimization process in order to find free roof forms, we apply it in order to explore and improve design alternatives. It is realized with the application of designing tools working in Rhinoceros 3D software.

The flexible scripts elaborated by us in order to achieve roofs’ models of regular and symmetrical shapes, are converted into simulation models to perform structural analysis. It is mainly focused on how the roof shells perform dependently on their geometric characteristics. The simulation enables one to evaluate various roof shells’ shapes, as well as to select an optimal design solution. The proposed approach to the conceptual design process may drive the designing to achieve geometric and structural forms which not only follow the design intentions but also target better results.
