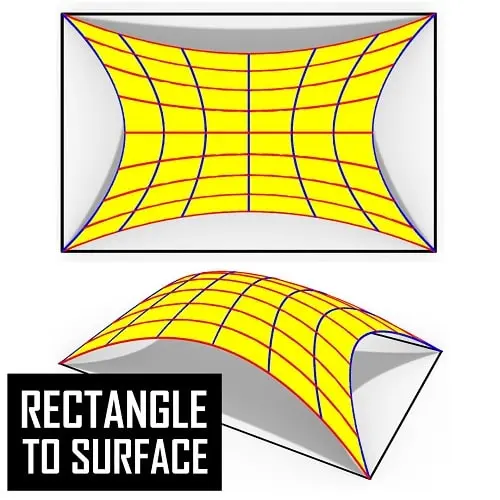

Rectangle to Surface

In this Grasshopper Script, You can convert a rectangle (or any 4-sided polygon) to a Nurbs surface and then extract the U, V Curves.

Duration : 6 minutes



Inputs

  • Rectangle: The Base Rectangle for converting to Surface
  • T0: A number between 0 to 0.5
  • Height: Height of the openings
  • U: Number of U Curves
  • V: Number of V Curves



Outputs

  • Surface: Final Nurbs Surface
  • U Curves: Extracted U curves
  • V Curves: Extracted V curves

In this Grasshopper Script, You can convert a rectangle (or any 4-sided polygon) to a Nurbs surface and then extract the U, V Curves.

💎🚀 Upgrade to Paracourse for full access.

Reviews

There are no reviews yet.

Be the first to review “Rectangle to Surface”
