SubD Connection

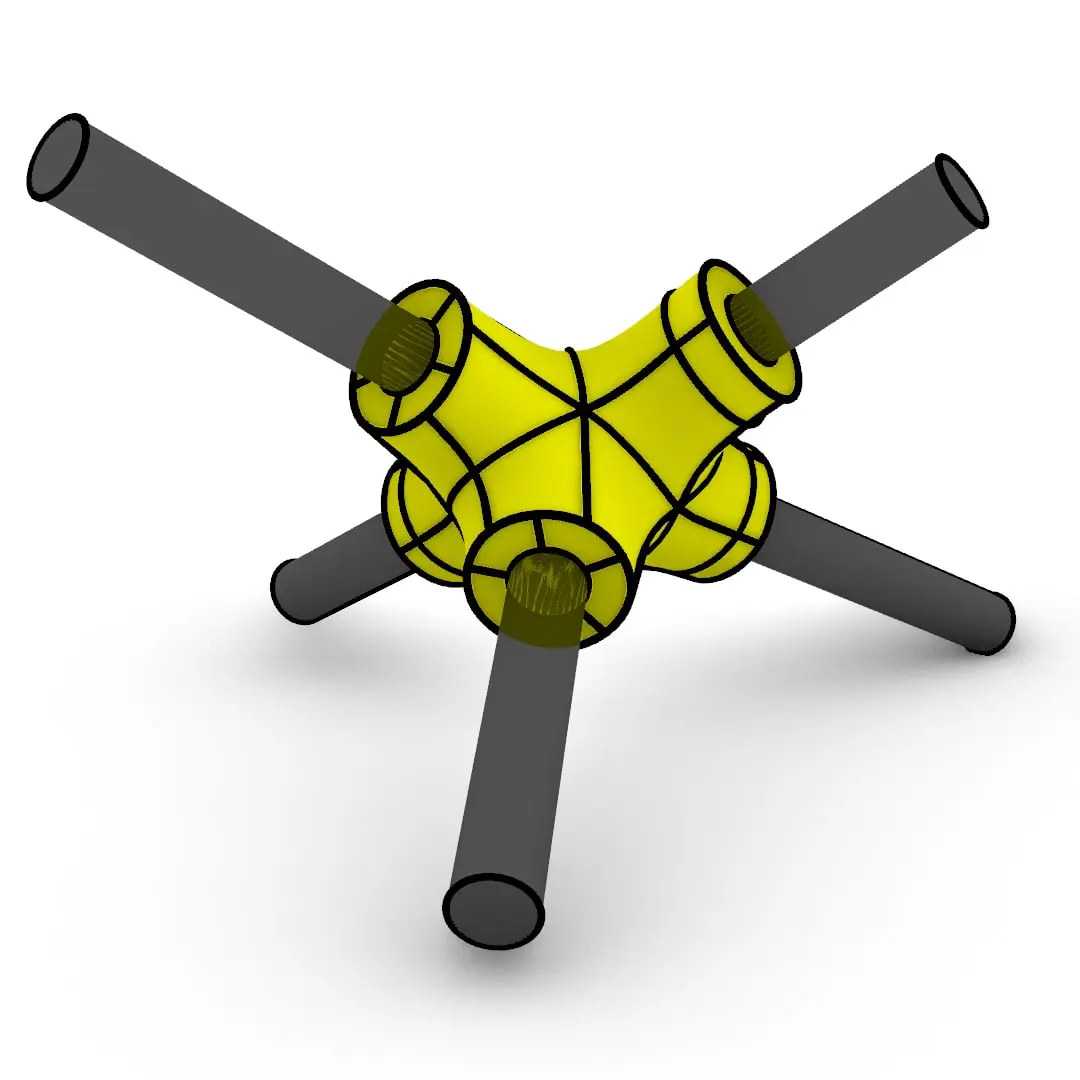

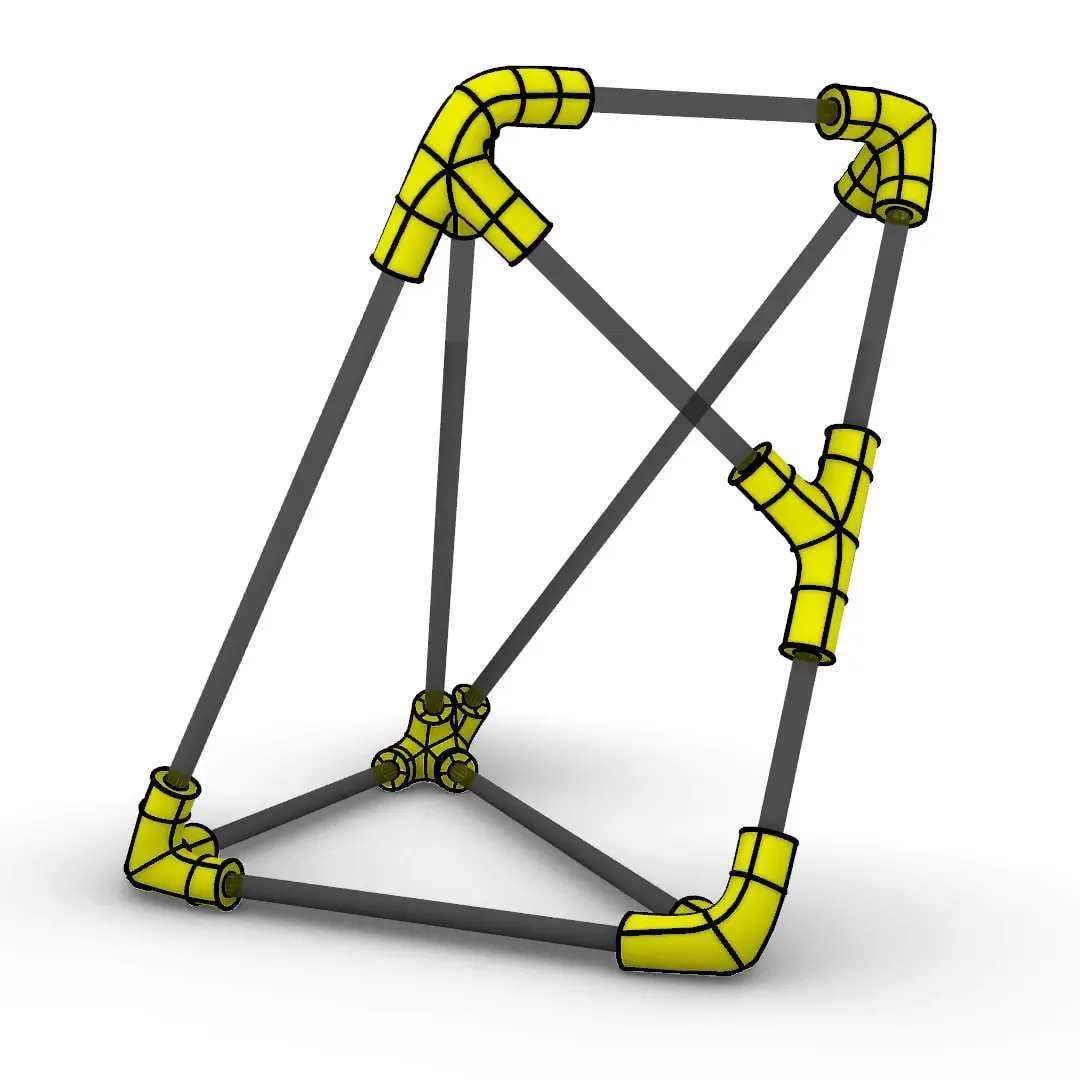

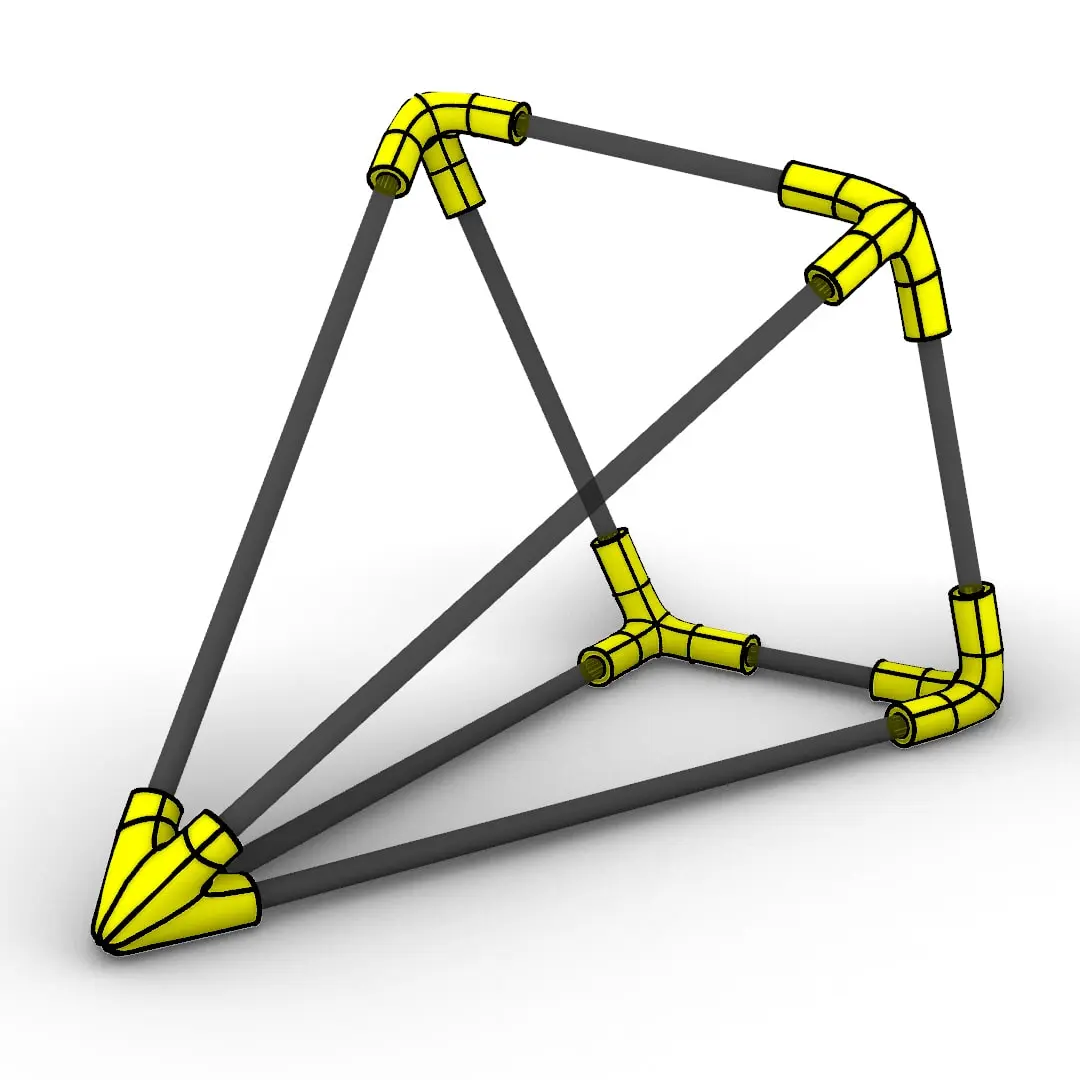

In this Grasshopper Script, you can convert a series of Lines or Curves into a Pipe+SubD connection.

Duration : 5 minutes

SubD Connection

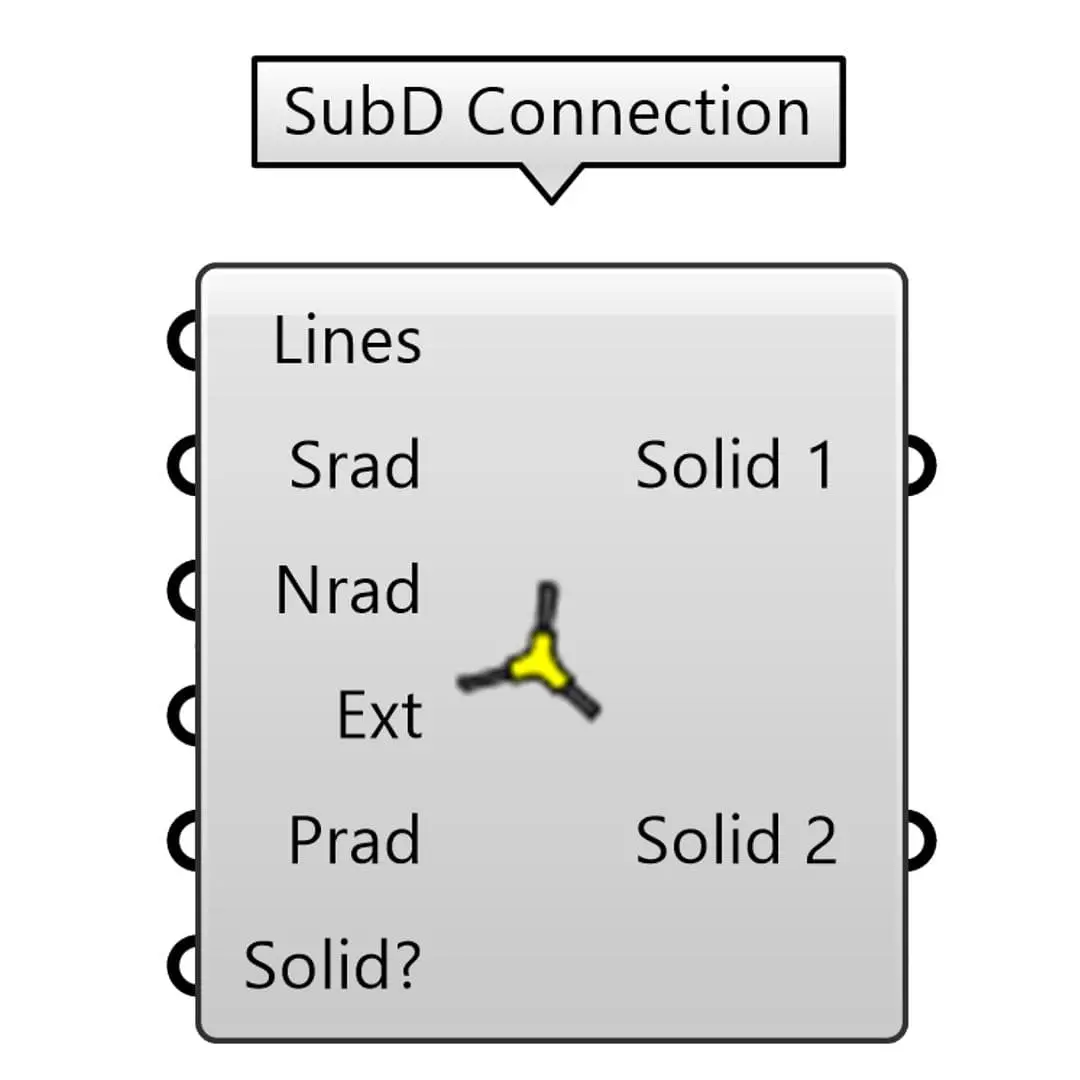

Inputs
  • Lines : Base Lines or Curves for the connection
  • Srad : Sphere Radius for Nodes
  • Nrad : Radius for the Nodes
  • Ext : Extension of the Lines or Curves
  • Prad : Radius for the Pipes
  • Solid? : Make the final Solids?

Outputs

  • Solid 1 : The first set of Solids (Node or Pipes)
  • Solid 2 : The second set of Solids (Node or Pipes)
