FlowL Grasshopper3d Plugin

FlowL

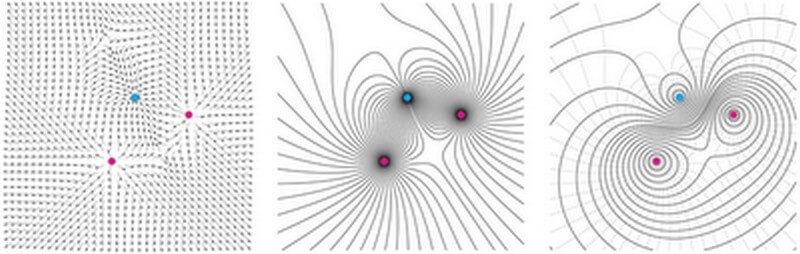

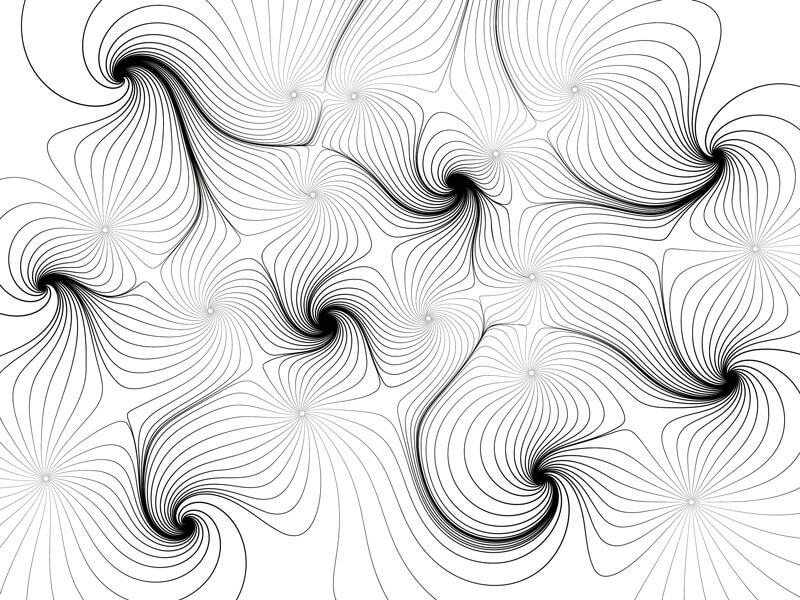

flowL by uto is a plug-in to visualize a vector field, generated through positive and negative point charges. The path lines are calculated with the "Runge-Kutta 4th Order Method" short "RK4".

Table of Contents

FlowL by uto is a plug-in to visualize a vector field, generated through positive and negative point charges. The path lines are calculated with the “Runge-Kutta 4th Order Method” short “RK4”, developed by the German mathematicians C. Runge and M.W. Kutta. around 1900.

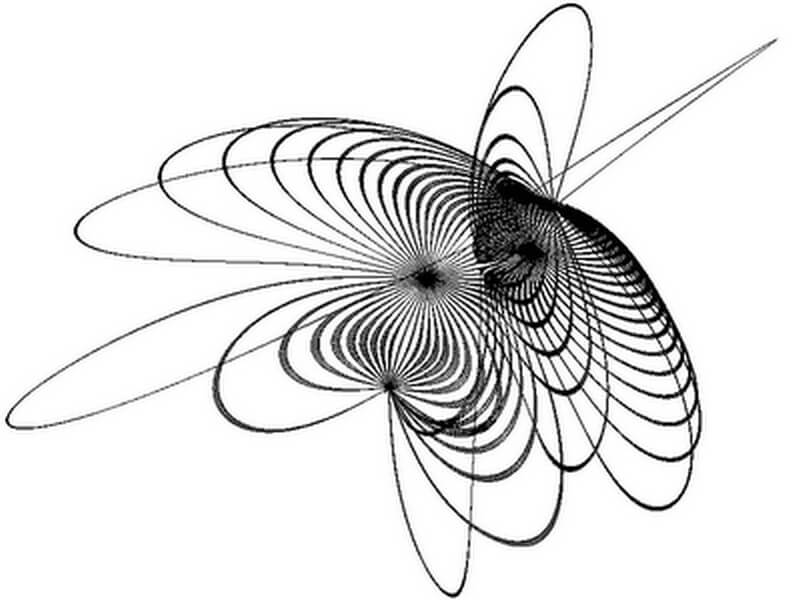

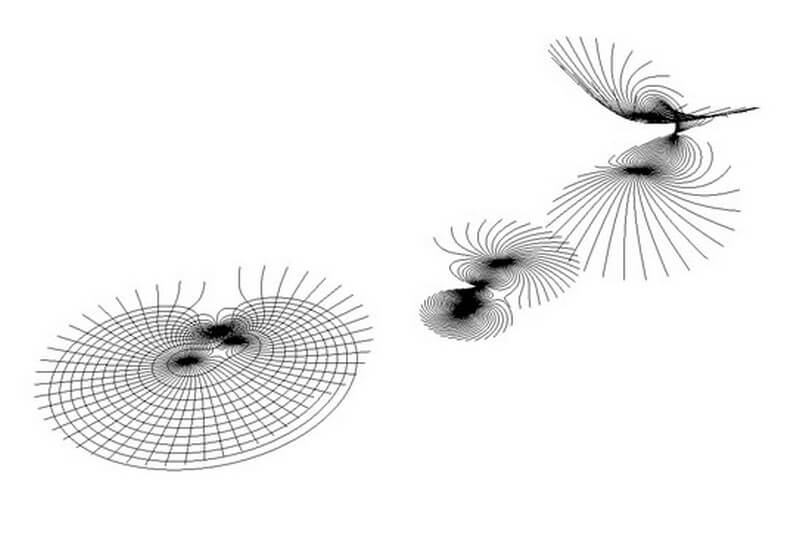

Included components: in the [extra] tab: FlowLines 2D, FlowLines 3D, FlowLines Rotation, Equipotentiallines

This plugin was created in-between a research on non-planned settlements for a master thesis on urbanization at the university of Innsbruck. tutor: patrik schumacher

More Info
