Super Delaunay Grasshopper3d Plugin

Super Delaunay

Super Delaunay plugin by Daniel González Abaldeallows you to compute the power diagram on a set of weighted points and returns: weighted voronoi, minimum spanning tree, relative neighbourhood graph, nearest neighbor graph...

Table of Contents

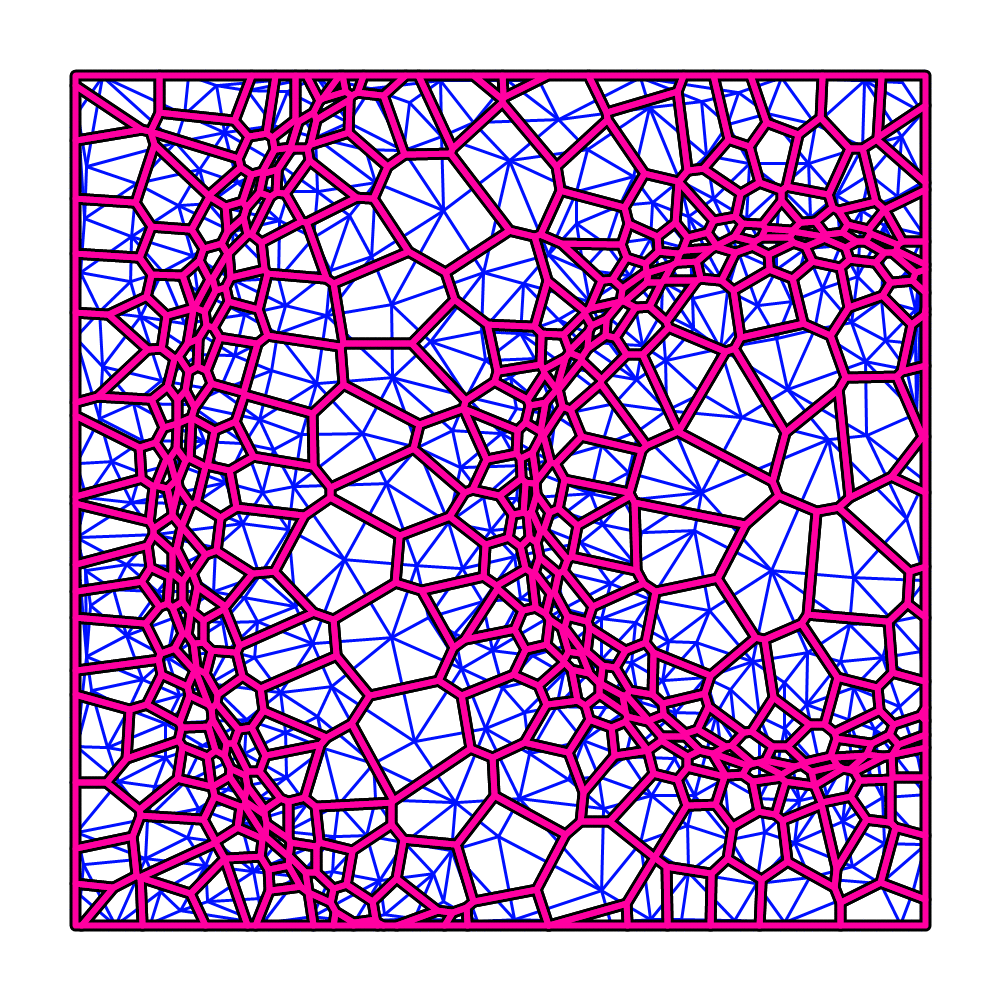

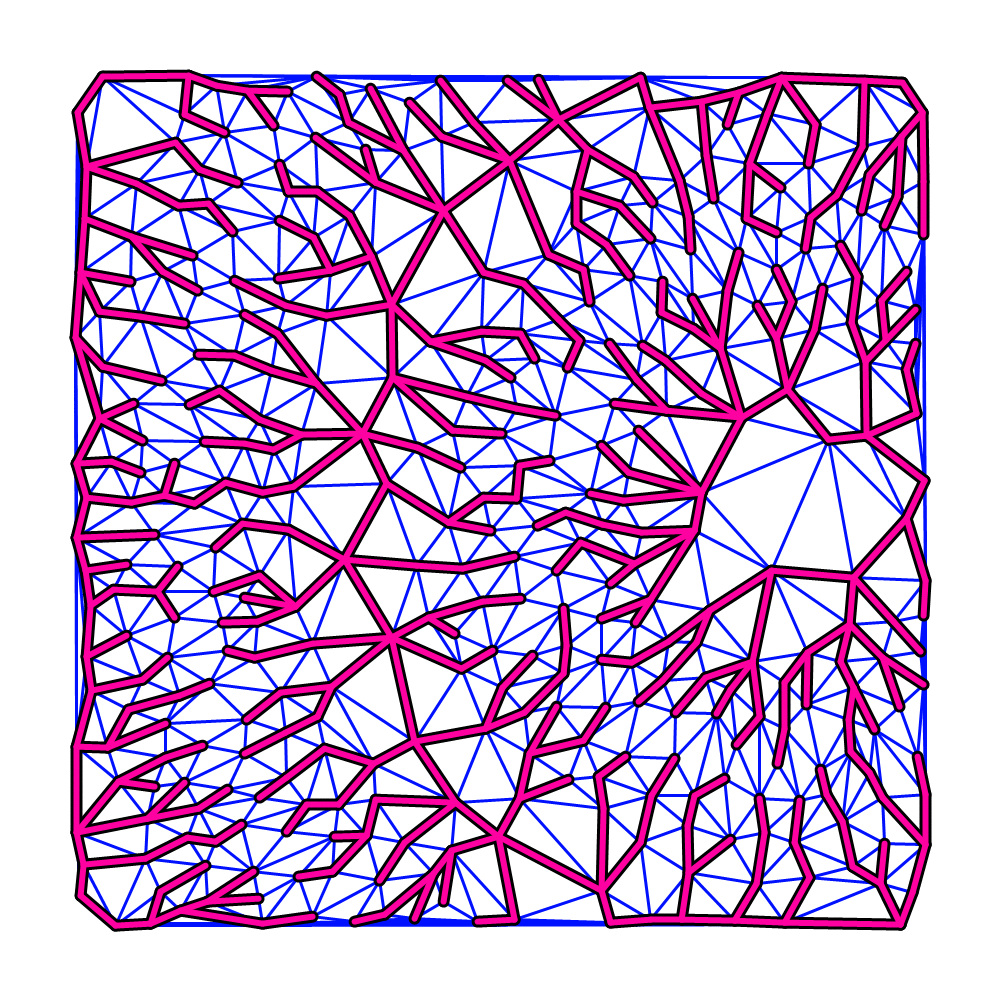

Super Delaunay plugin by Daniel González Abalde allows you to compute the power diagram on a set of weighted points and returns: weighted voronoi, minimum spanning tree, relative neighbourhood graph, nearest neighbor graph, urquhart graph, beta skeleton, primal and dual thickener and more.

To install (as usual with .gha files):

  1. Unzip file.
  2. Make sure SuperDelaunay.gha is unlocked, right click > Properties > Unlock (if visible).
  3. Copy and paste it in the Grasshopper Libraries folder, usually: C:Users<YourUser>AppDataRoamingGrasshopperLibraries.
  4. Restart Rhinoceros and Grasshopper.

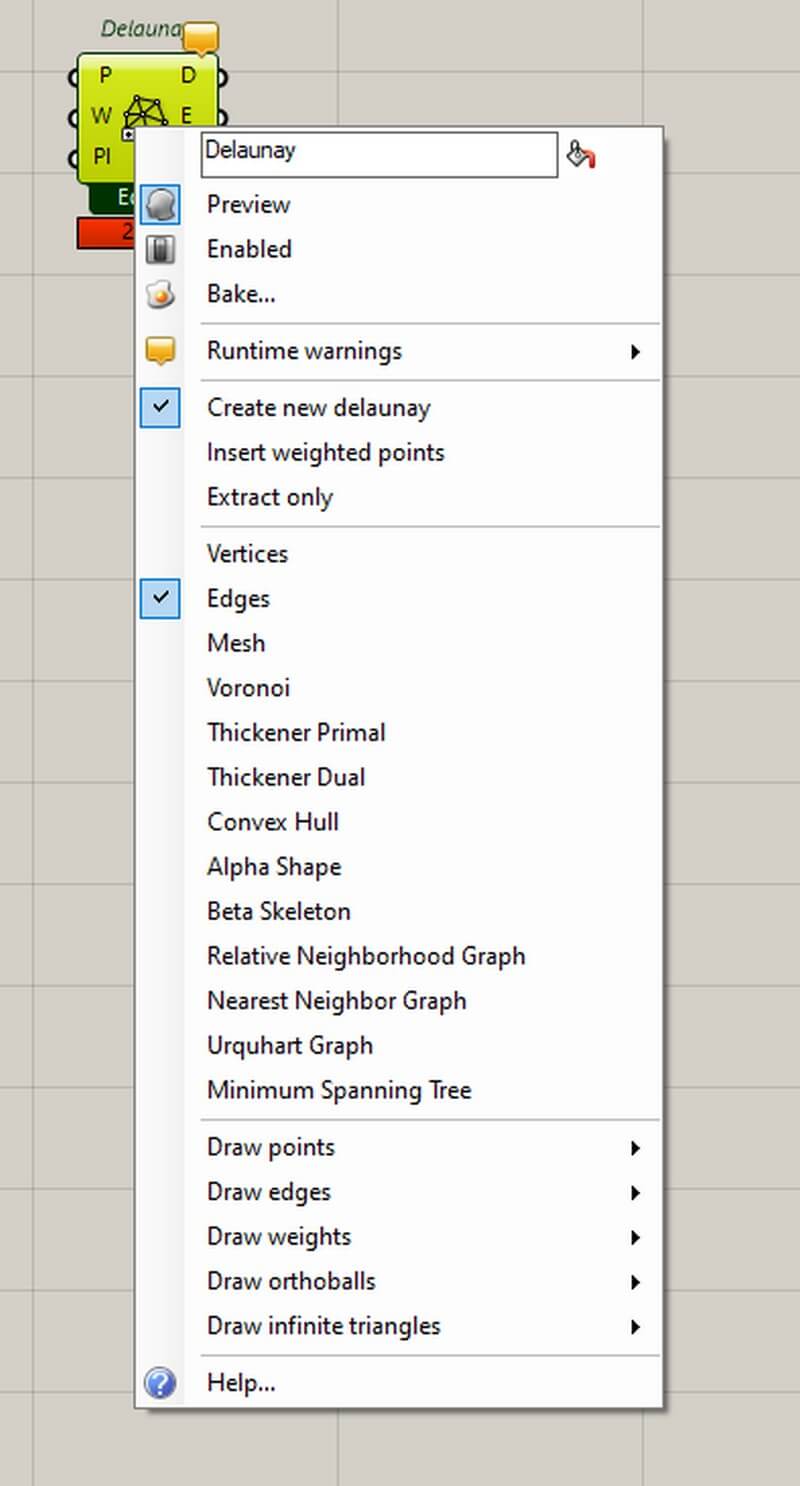

  5. Component is located at Mesh Tab > Triangulation panel.

More info
